XTREME SERIES
XTREME 5

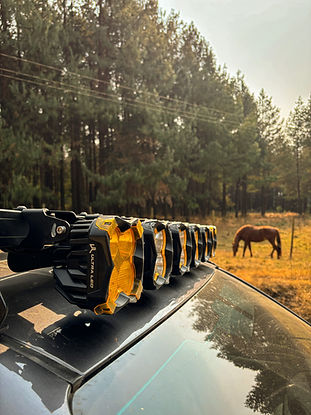

The XTREME 5 compromises of our latest 5” pod technology. We’ve packed the latest P8 12w Osram LED chips in a compact, stealthy housing. The unique design of the XTREME 5 spot light will certainly add something different to your 4x4! The deep reflector comes hot off the press with a monster Hyper-Spot beam pattern that can be changed to a combo spot & flood pattern with our snap-on lens covers (sold separately). It’s all connected and housed in a rugged weather-resistant enclosure that can be mounted practically anywhere and will withstand the most demanding environments.
XTREME 5 SPOT BEAM
Beam Width - 16m
1Lux @ 600m
0.25Lux @ 750m
XTREME 5 COMBO BEAM
Beam Width - 26m
1Lux @ 500m
0.25Lux @ 600m
SPECS
-
LUMENS: 5,500 (Per Light)
-
DIMENSIONS: 4.95” x 3.6” x 4.95”
-
LED CHIP: Osram
-
OPTICS: Hyper Spot
-
WATTS: 48w
-
CURRENT: 4.12A @12v
-
CONNECTION: 2 Pin Deutsch
-
COLOR: White (5700k)
-
LENS TYPE: Polycarbonate
-
IP RATING: IP67
-
WARRANTY: 3 Year Limited Warranty
XTREME Mini
The XTREME Mini is twin LED firecracker and really does prove that dynamite comes in small packages! A completely unique design thats sure to make your ride stand out. Powered by twin Osram P8 LED chips in a long reflector housing the XTREME Mini throws light @1lux 500m down the line while still throwing some spread out the sides. The perfect light for your front bumper, A-pillars or even on your SXS.
Beam Width - 14m
Beam Length - 1 Lux Distance 500m
SPOT BEAM
SPECS
-
LUMENS: 4,000 (Per Light)
-
DIMENSIONS: 4.76” x 3.46” x 2.76”
-
LED CHIP: Osram P8
-
OPTICS: Hyper Spot
-
WATTS: 30w
-
CURRENT: 4.12A @12v
-
LENS TYPE: Polycarbonate lens
-
CONNECTION: 2 Pin Deutsch
-
COLOR: White (5700k)
-
IP RATING: IP67
-
WARRANTY: 3 Year Limited Warranty
